Mô tả

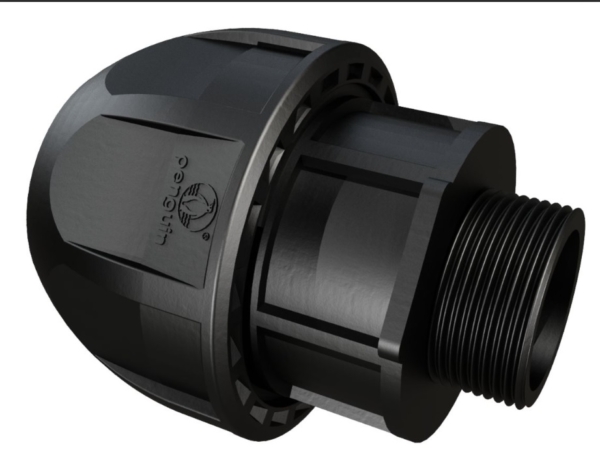

| A male thread straight connector is used to join two devices or fittings with female threads of the same size. Technical specifications: – Size range: DN15 – DN100 (or upon request) – Connection type: Male thread – male thread – Body material: PP plastic, ductile iron, carbon steel, stainless steel (depending on model) – Thread standard: BS21 / ISO 7 – Applicable standards: ISO 17885, ISO 3458, ISO 3459, ISO 3501, ISO 3503 – Working pressure: PN10 – PN16 – Working temperature: –10°C to +120°C Key product features: – Two equal-size male threaded ends for easy connection to female-threaded fittings – Compact and robust design with good mechanical strength – Ensures high sealing performance when properly installed (using PTFE tape or thread sealant) – Suitable for small to medium-scale piping systems Benefits: – Fast and simple installation: no welding or flanges required – Flexible connection: ideal for joining valves, meters, and female-threaded fittings – Cost-effective: lower cost compared to flanged or grooved connections – Easy replacement and maintenance: simply unscrew and reinstall – Smart next-generation connection solution from Penguin Disadvantages: – Limited pressure rating and size range: not suitable for large pipelines or very high-pressure applications – Dependent on thread quality: poorly machined threads may cause leakage – Requires additional sealing materials: PTFE tape or thread sealant must be used during installation |
